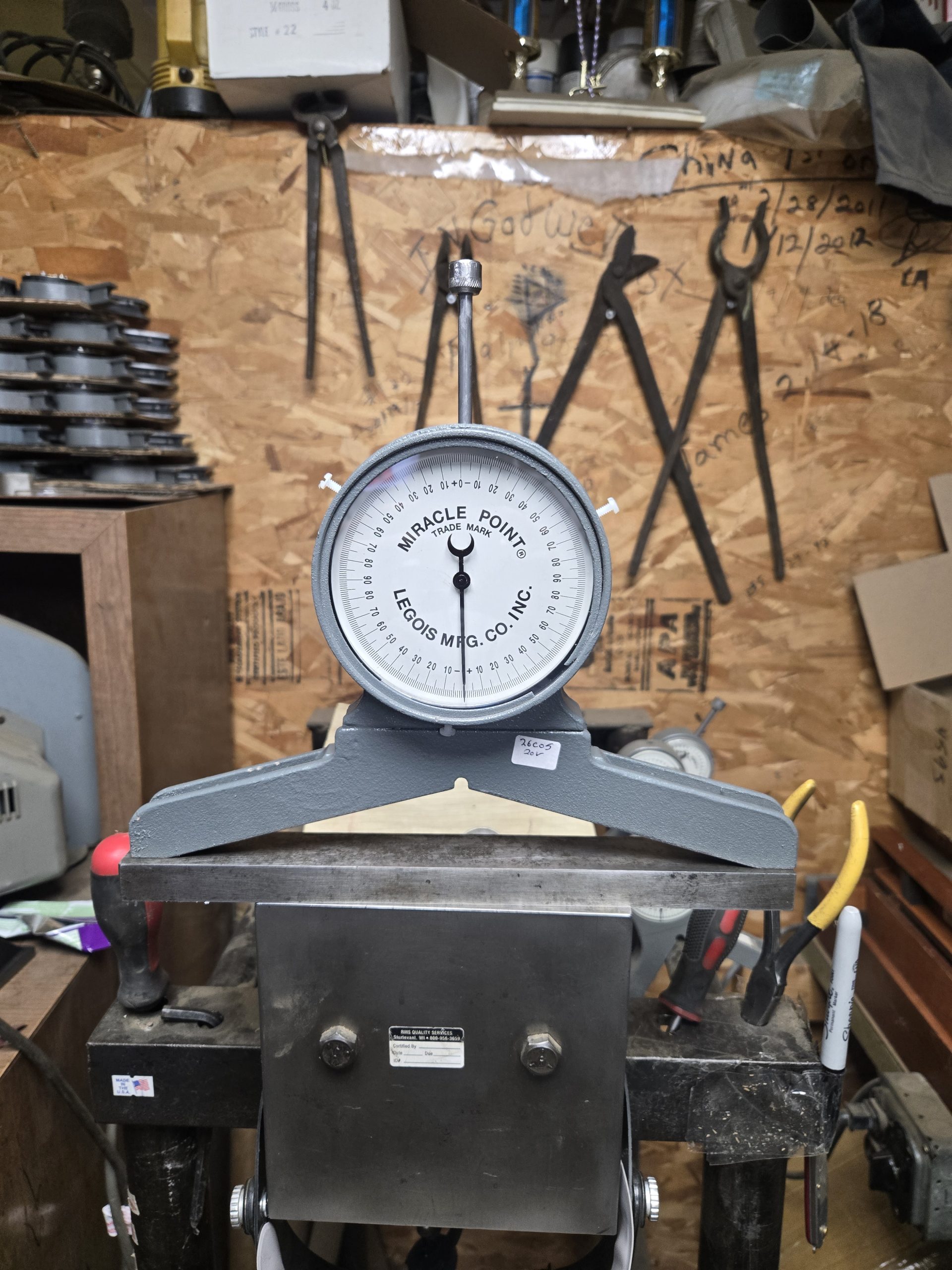

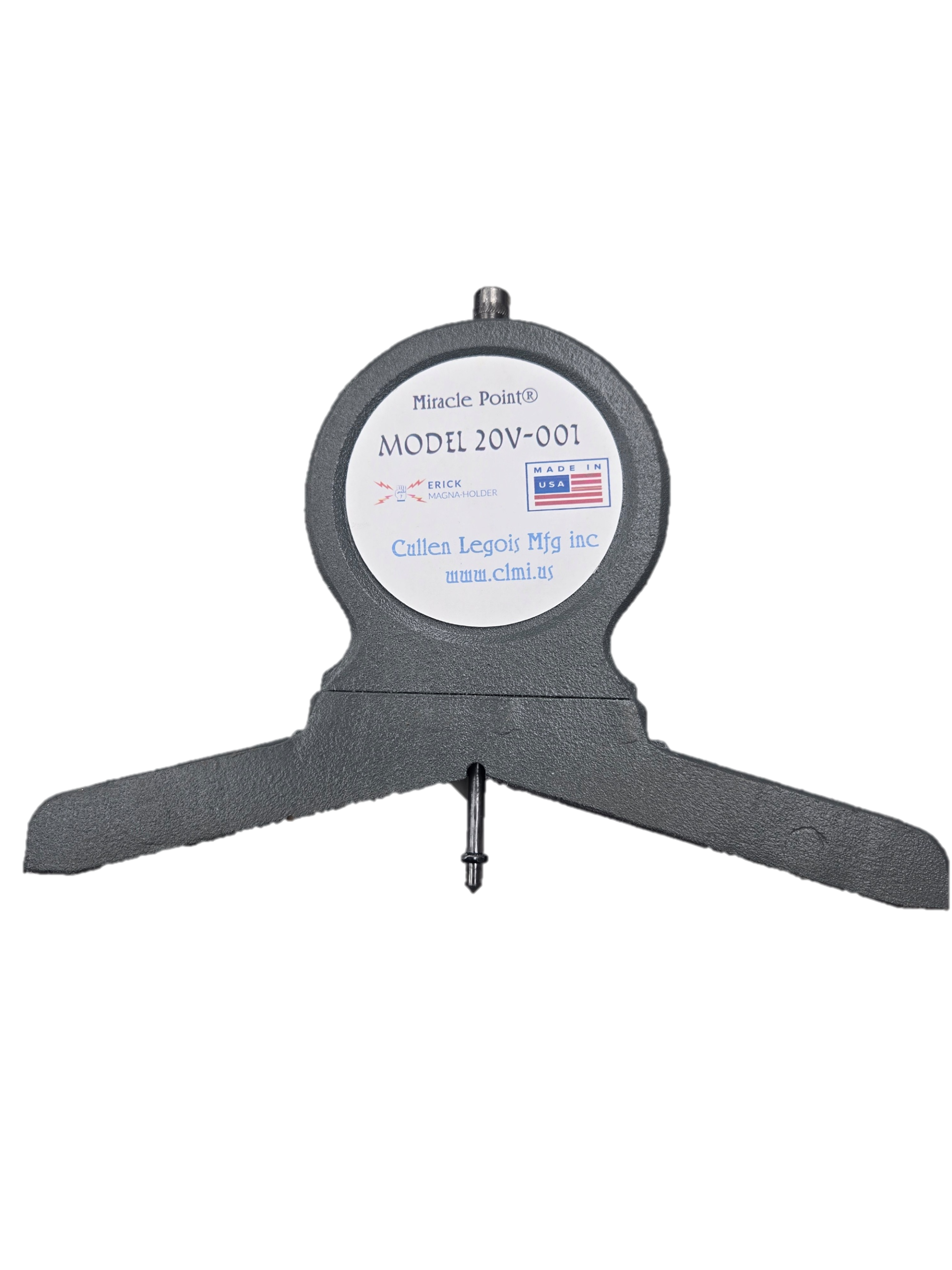

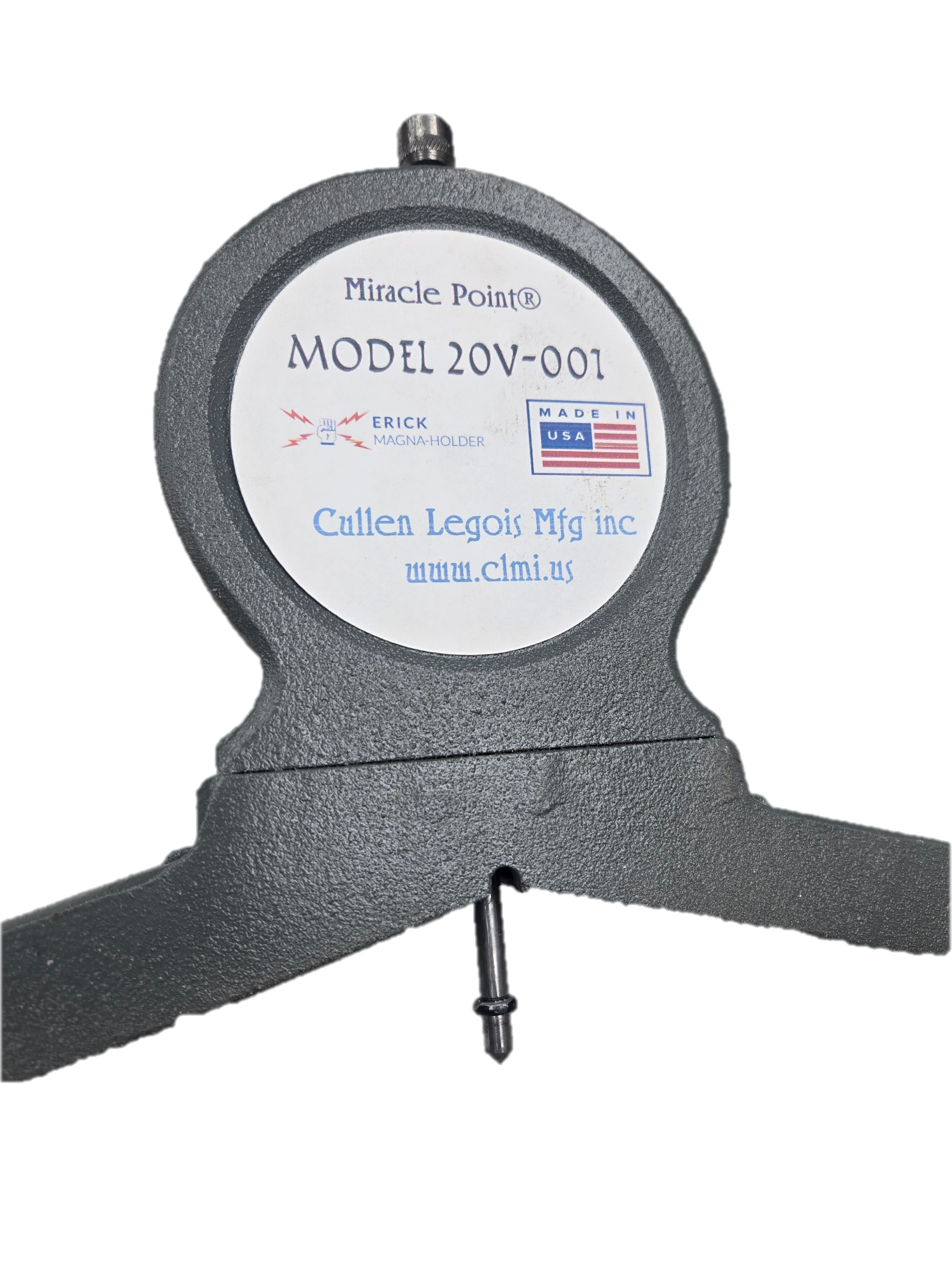

Magnetic Base Protractor & Center Locator

The Miracle Point® Model 20V is engineered for locating center points and measuring angles on larger diameter pipe, round stock, square stock, hexagonal stock, and flat stock. Designed with the same trusted precision as the Miracle Point® Model 900 Series, the Model 20V provides fast, accurate layout for fabrication, pipe bending machines, machining, and balancing applications.

Key Features

• Large pipe center finder for fabrication and machining

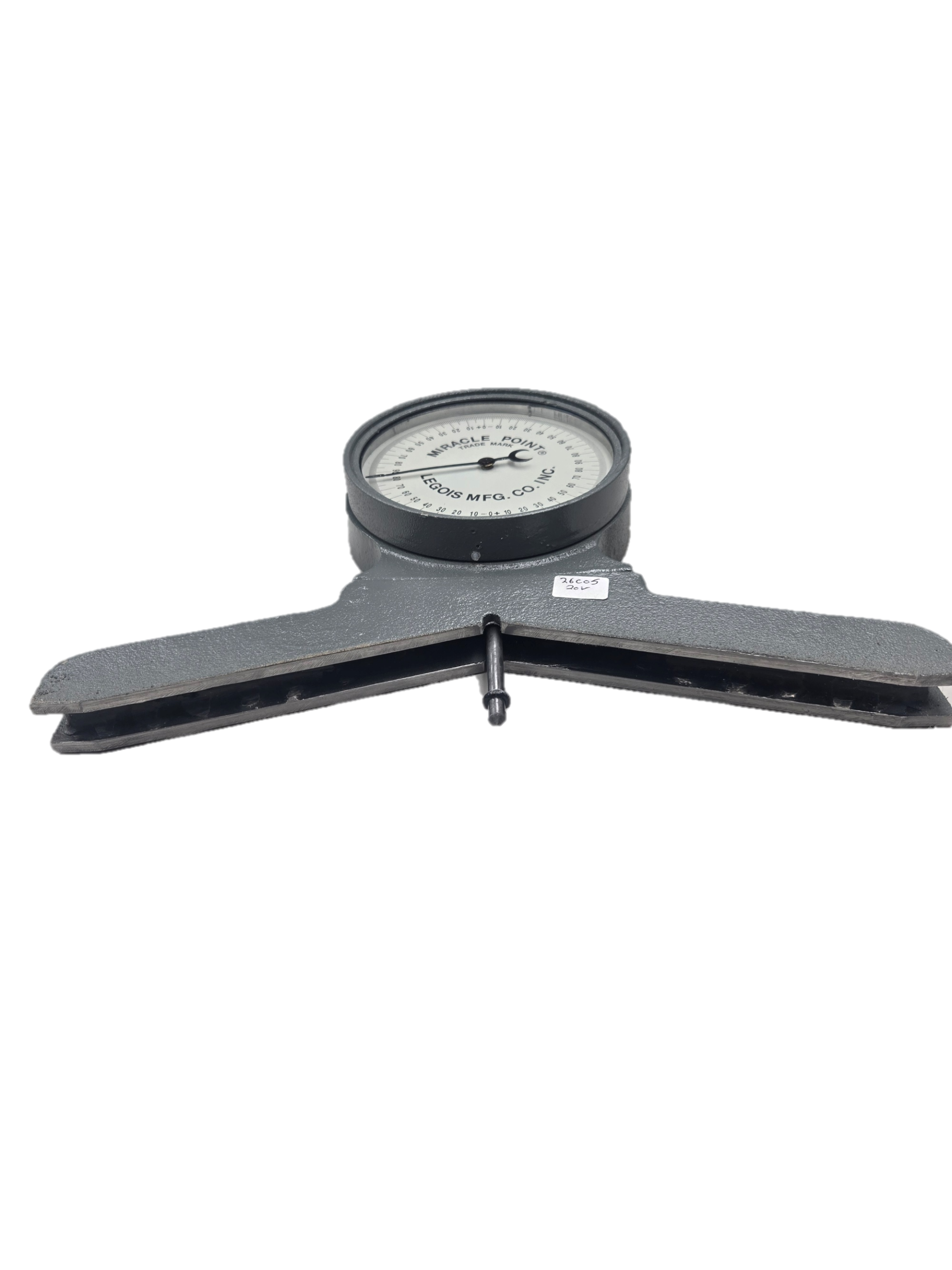

• Magnetic V-base holds securely on ferrous materials
• Precision center pin marks the exact center at any angle

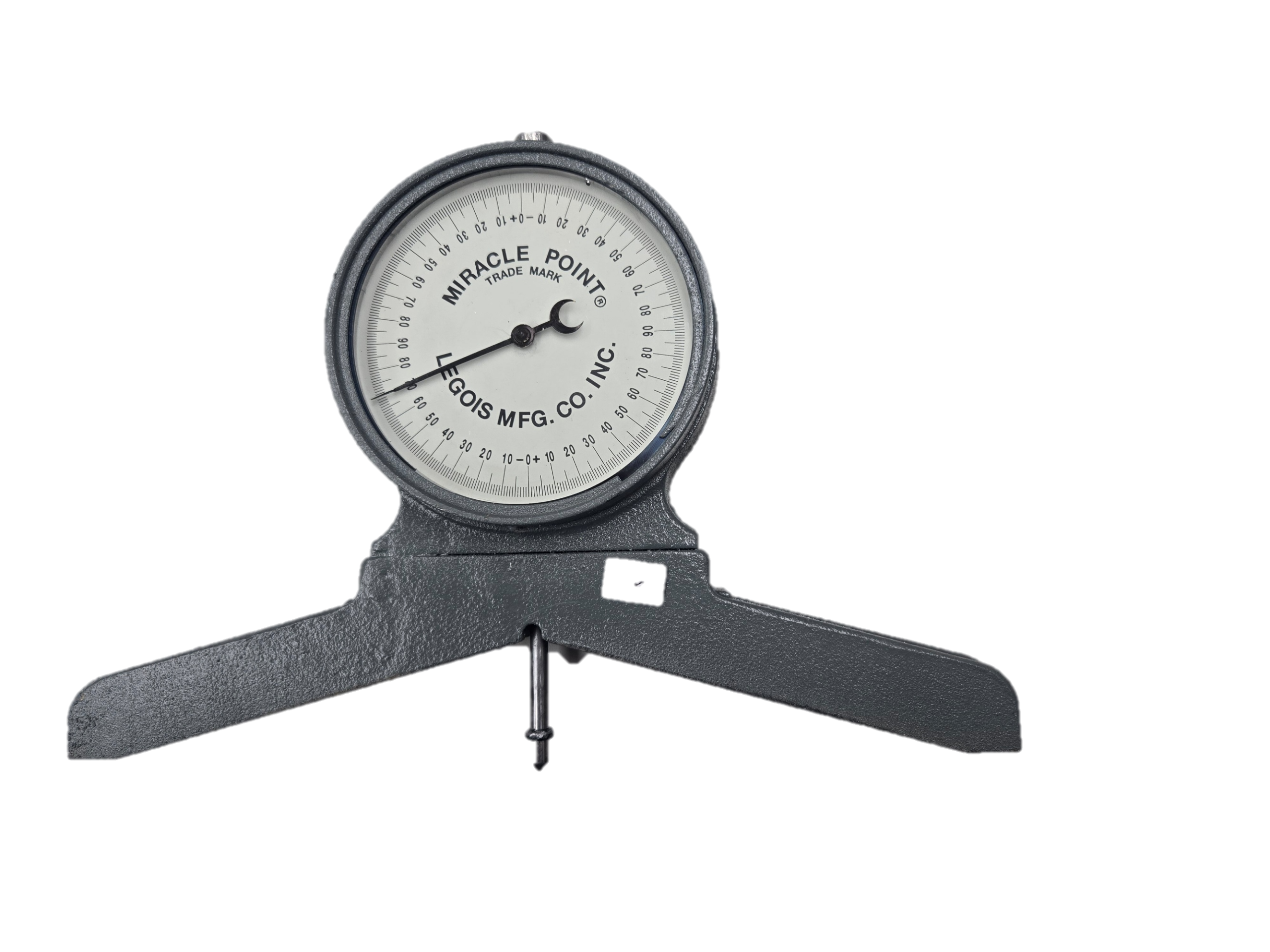

• Large 4″ dial display for easy reading
• Functions as center locator and pipe layout tool
• Heavy-duty construction for shop and field use
• Guaranteed accuracy ±0.5° for one full year

Specifications

Dial Options

• 20V-001 — 0-90-0-90-0 quadrant dial for general layout work ( In stock )
• 20V-002 — 0-360° clockwise reading dial for working counter-clockwise (commonly used on pipe bending machines) (special order)
• 20V-003 — 0-360° counter-clockwise reading dial for working clockwise (commonly used on balancing machines)  (special order )

Website: www.clmi.us

Miracle Point® is a registered trademark of Cullen Legois Mfg. Inc.
