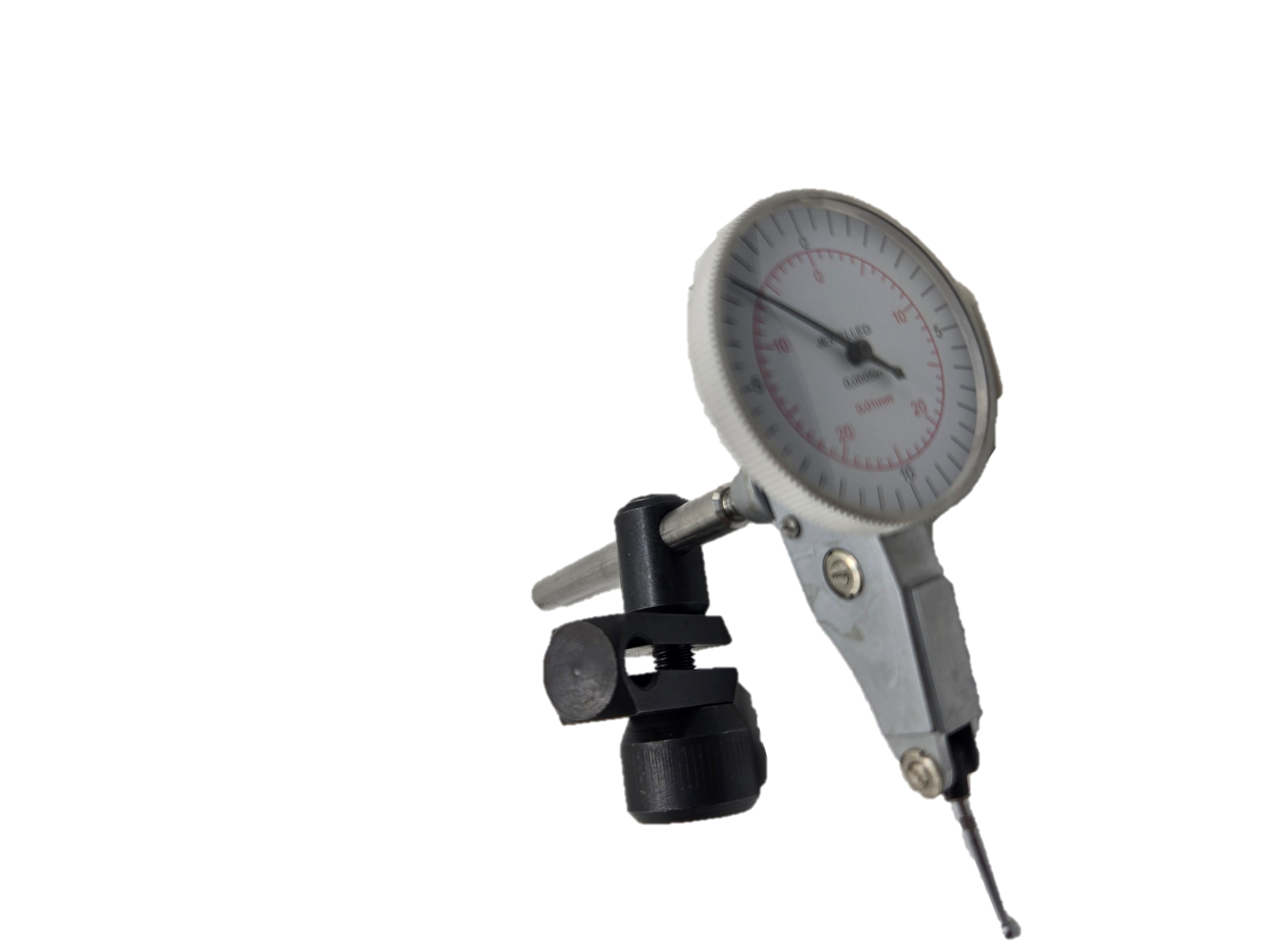

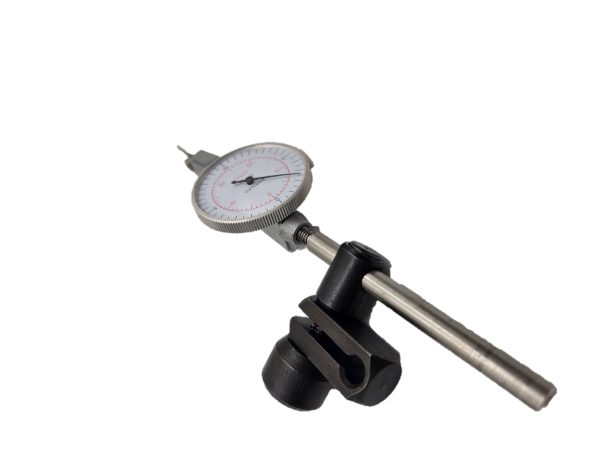

Dovetail rapid lever Dial Test Indicator holder kit

Dovetail rapid lever Dial Test Indicator Kit Model 210D-00K

• 0 in to 0.01 in / 0.01MM Range
• 0-.01-0 / 0-0.025mm Dial Reading
• Range 0 in to 0.01 in
• Graduation 0.0005 in .01 mm
• Contact Point Dia. 0.080 “
• Dial Color White
• Dial Reading 0-10-0
• Dial Size 1.5”
• Dimension Type in .0005 and mm .01
• Includes Dovetail Mount Attachment to ¼” rod included
• Maximum Measurement – .01 in
• Minimum Measurement – Inch.0005 in .01mm
• Operation Lever-Style
• Range per Revolution 0.02 in
• Test Indicator Style
• Accuracy ±0.0005 in / .01mm
• Bearing Type Jeweled
• Contact Point Material Steel
• Contact Point Shape Ball

Includes

• 0.250 in Swivel Post Holder; 1/4 in Dovetail Clamp;.227 in Dovetail Clamp ¼”Tool Post Holder

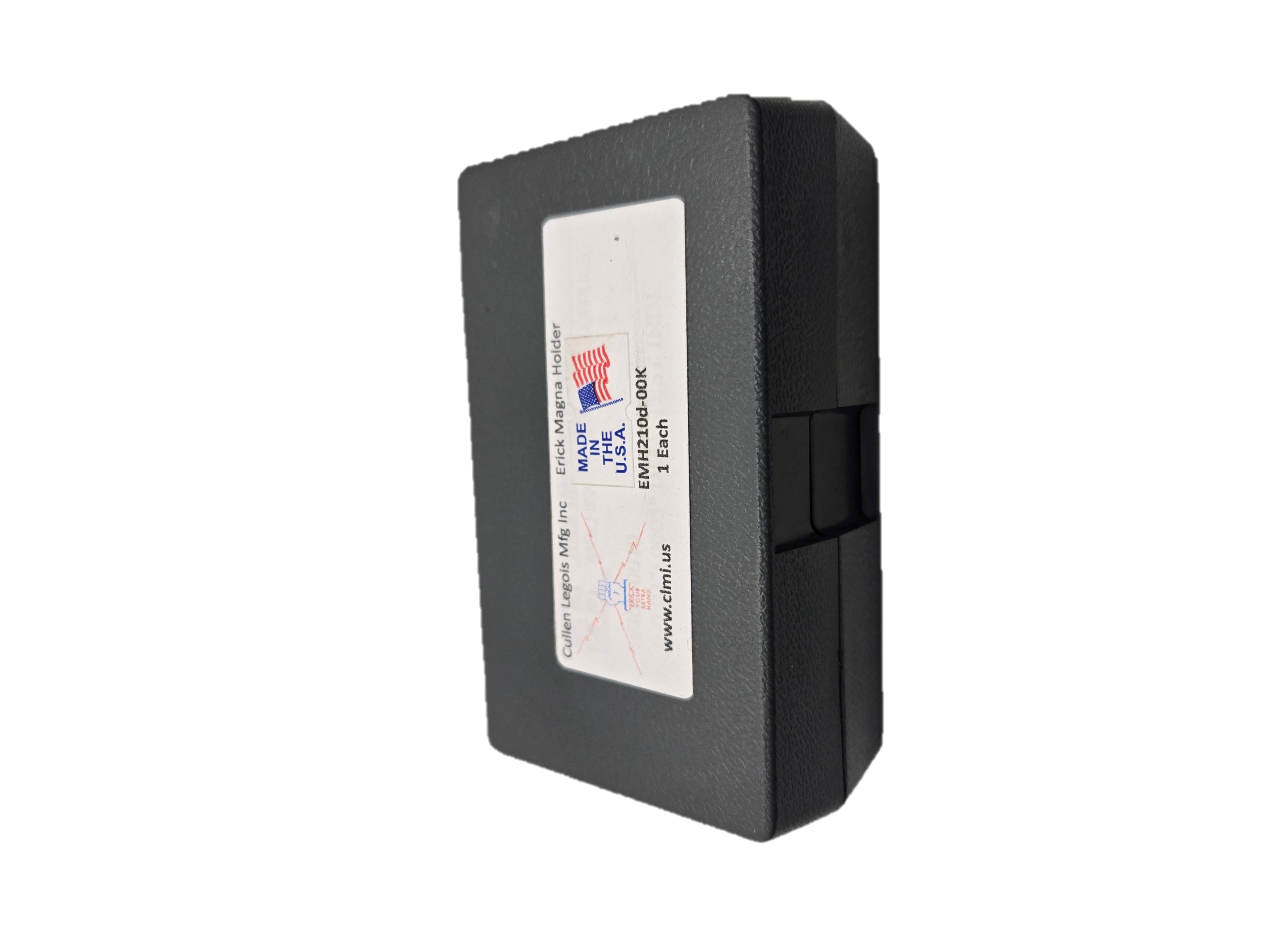

• Includes Case
• Mounting Style Dovetail
• Stylus Length 5/8”

Country of Origin:
The Indicator holder Is Made in the USA (Indicator made in China)
