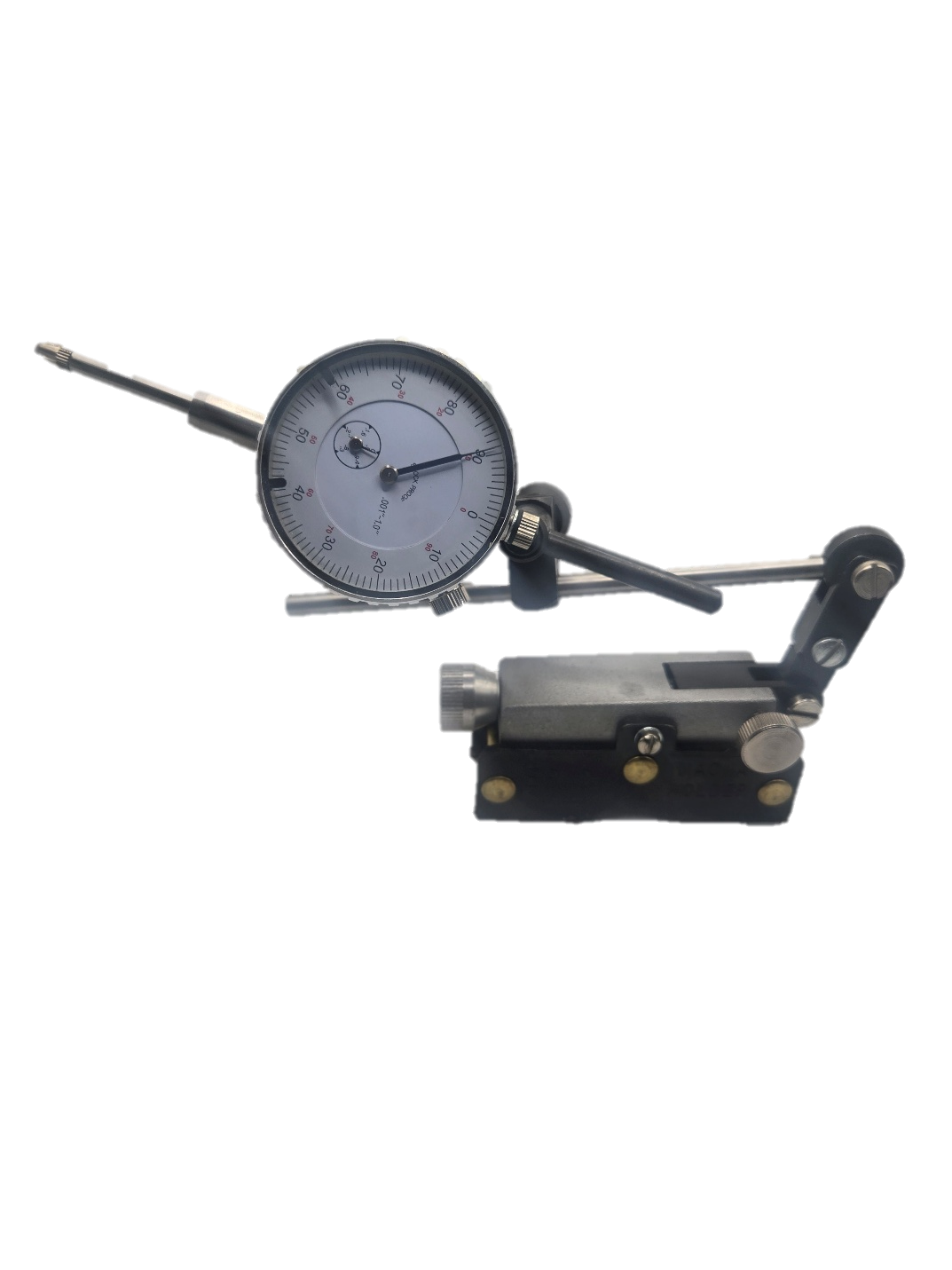

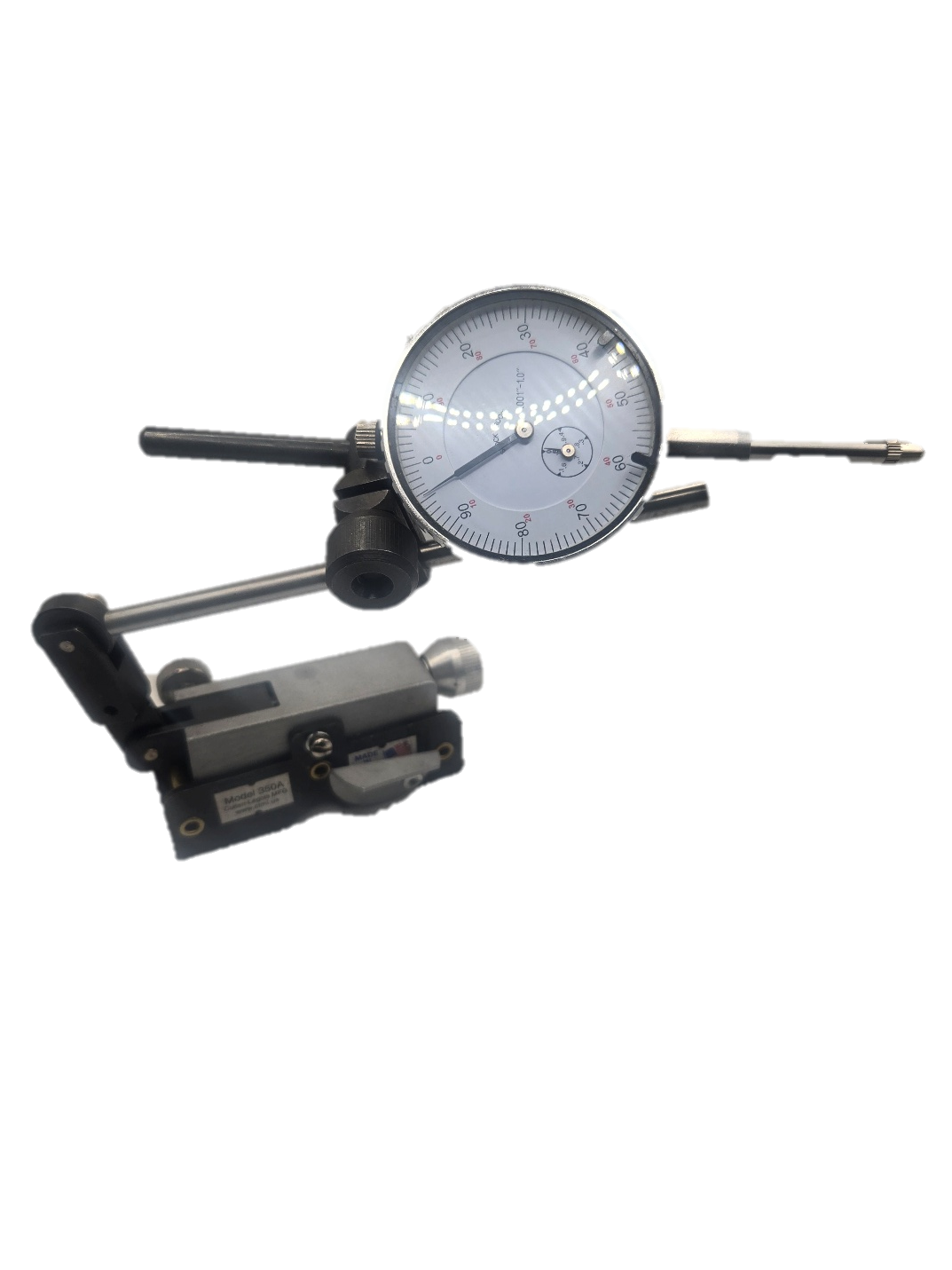

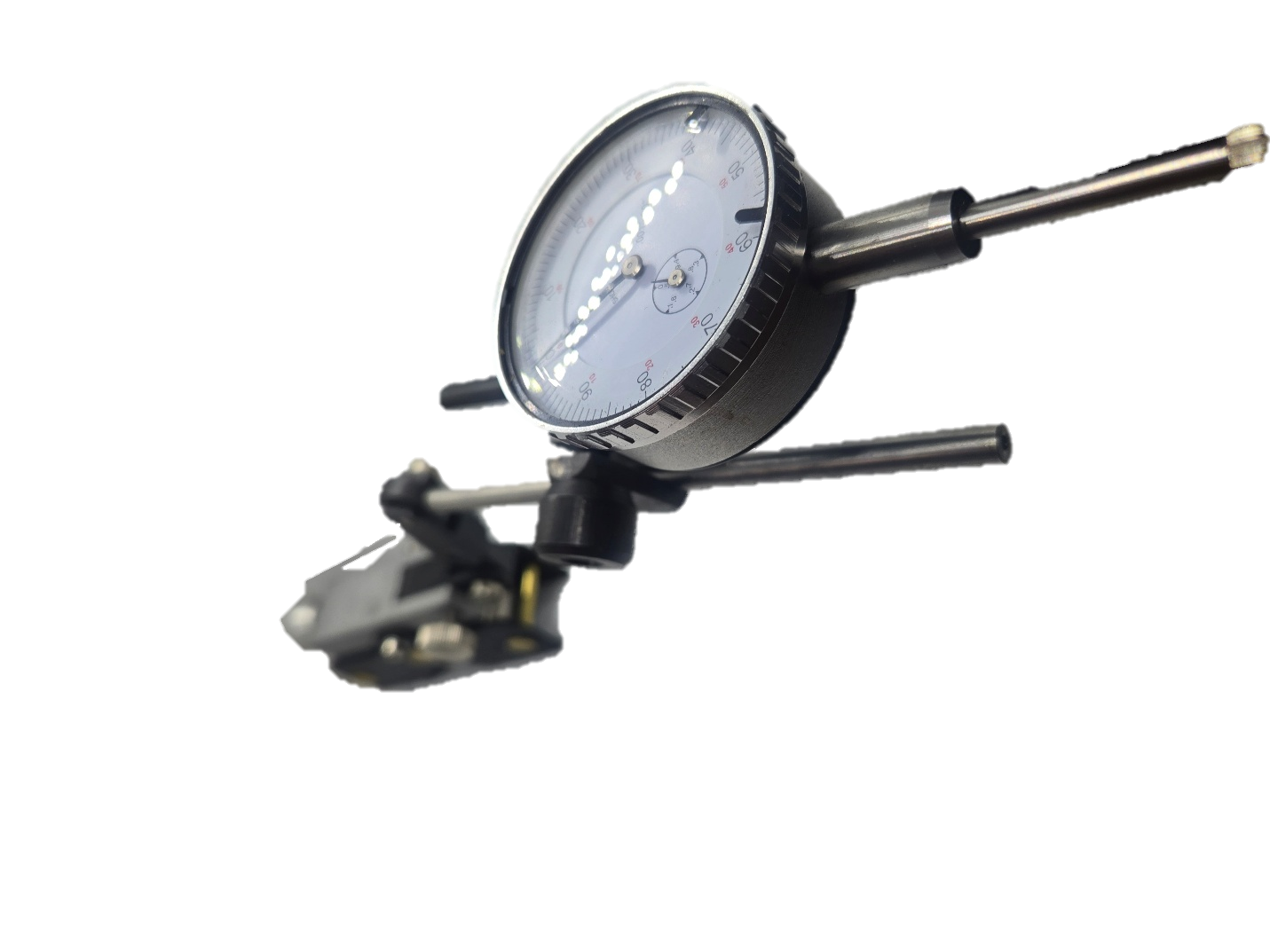

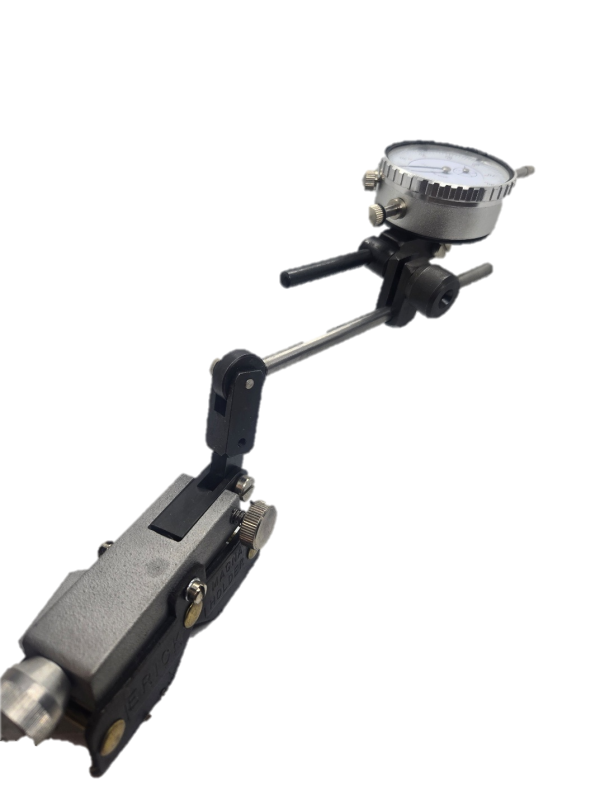

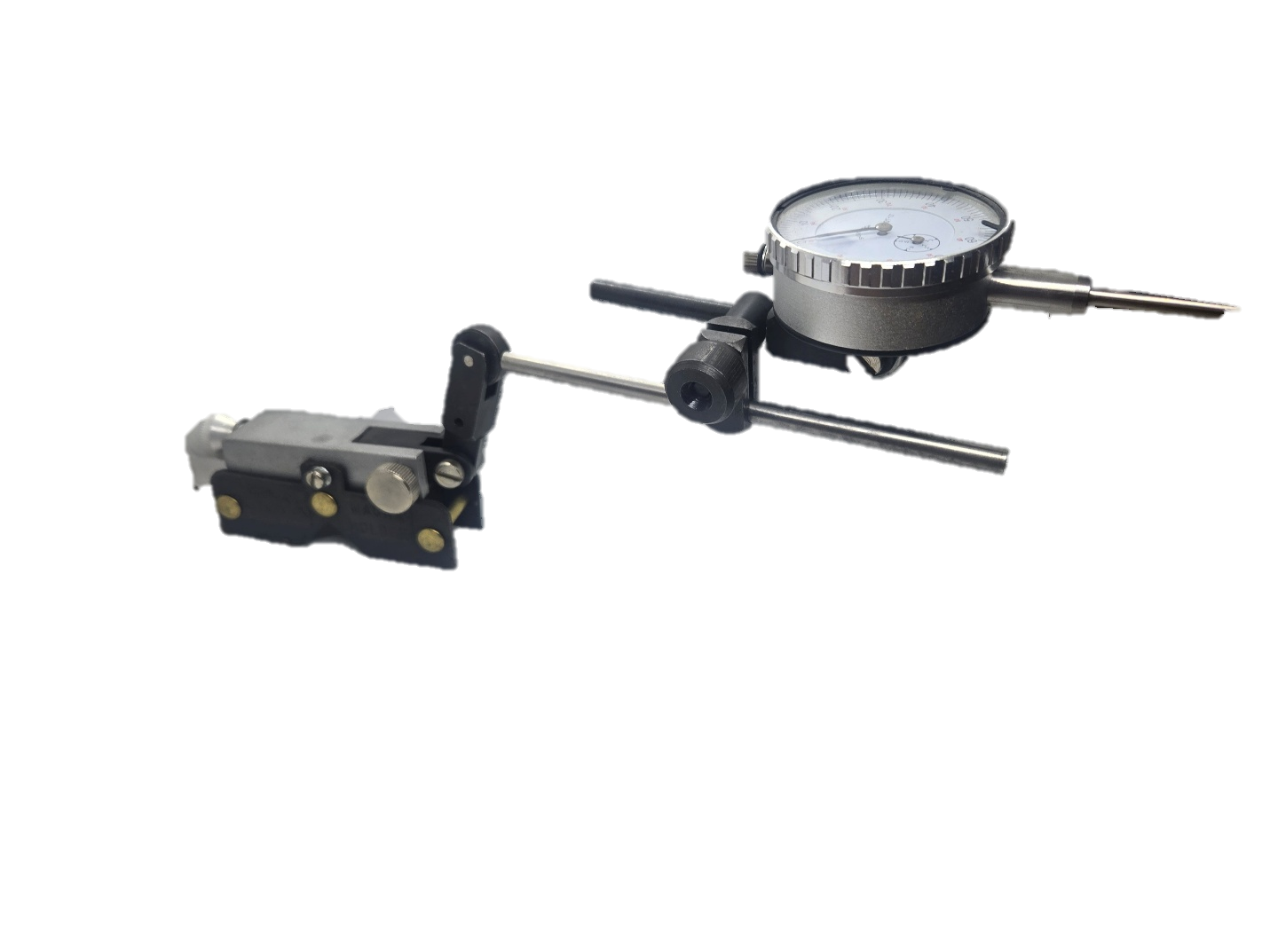

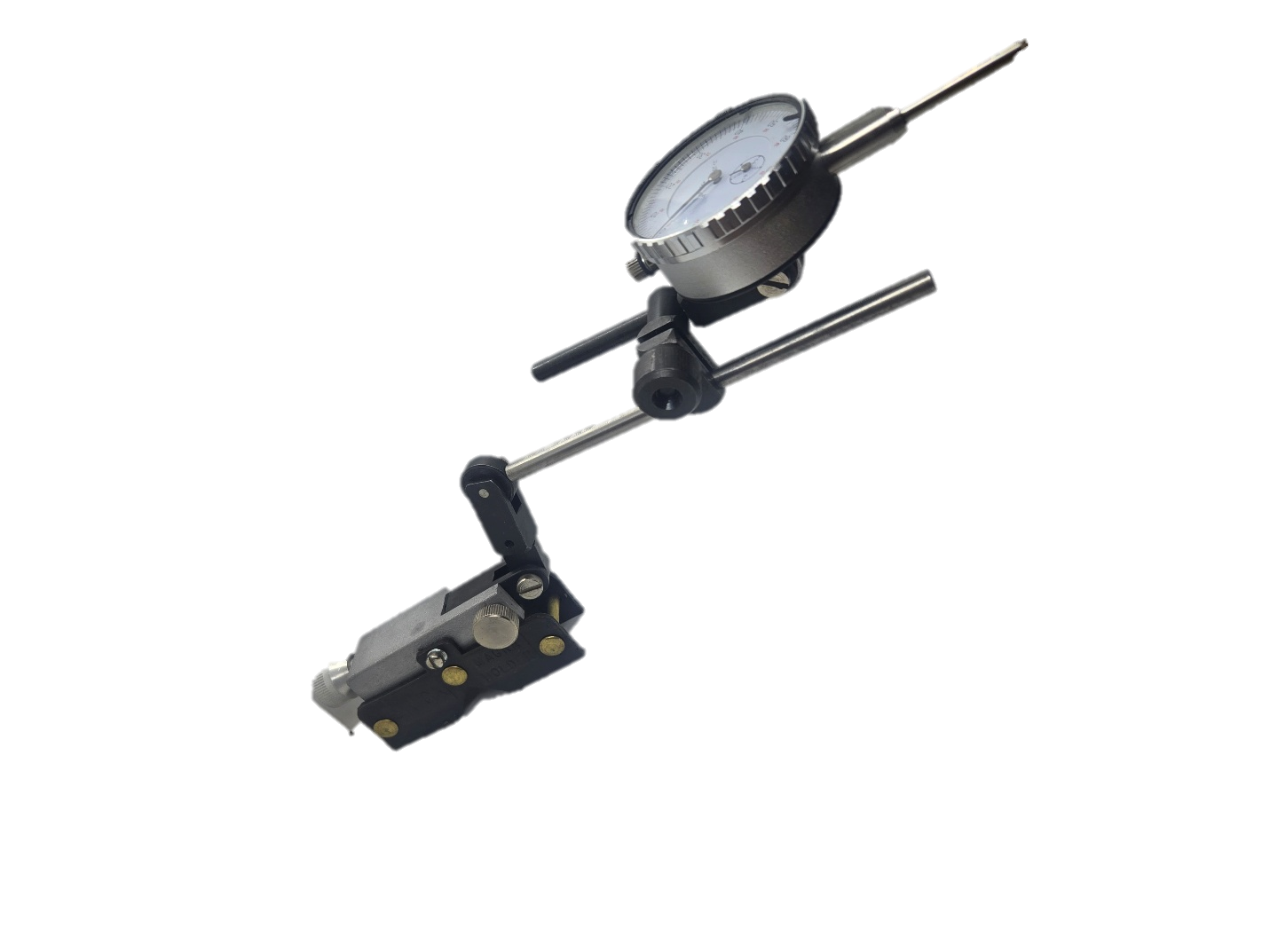

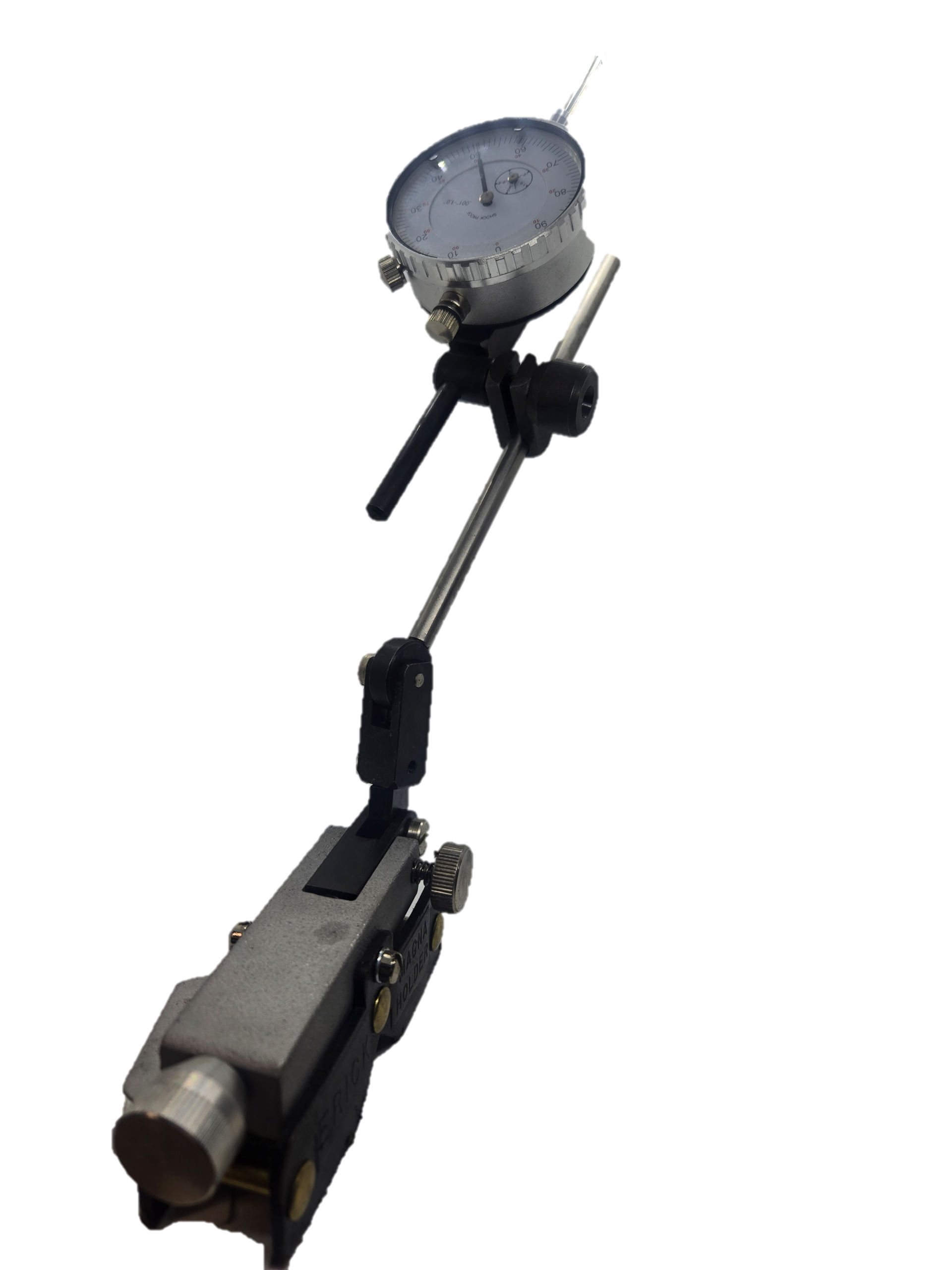

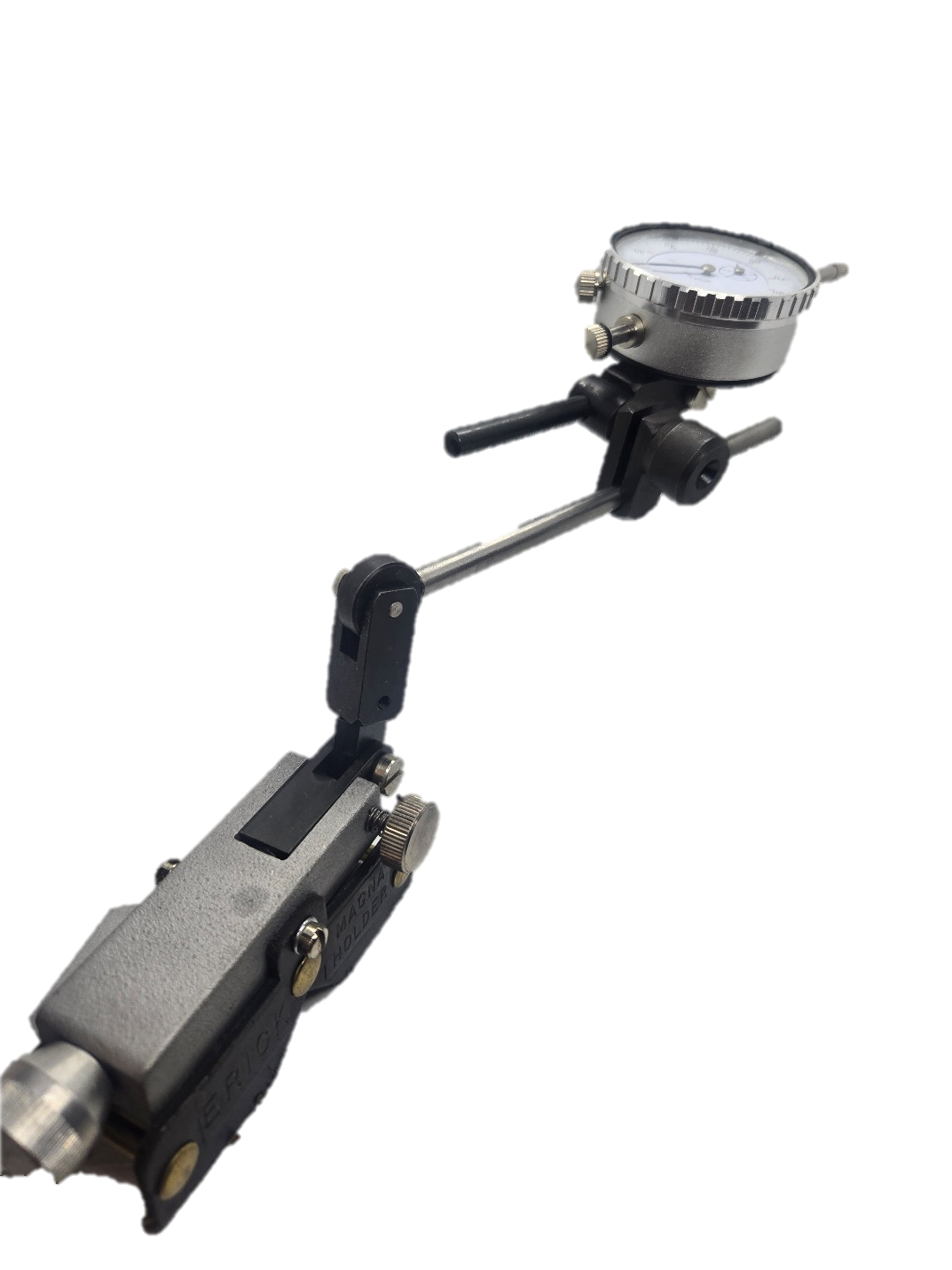

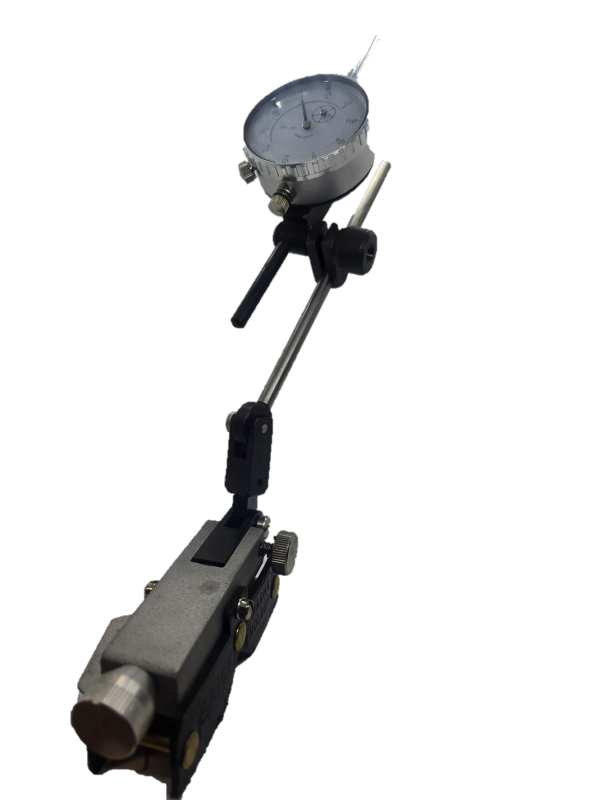

Erick Magna Holder – Model 350a Dial Indicator Magnetic Base Holder Kit

Comes complete with easy to read indicator with Dial Indicator and Vertical lug back configuration. Dial Indicator: has 1″ stroke.

The resolution is 0.001″

Magnetic Base: powerful magnet to flat or round surfaces. Reach as far as 9” with fine adjustment with the Knurled thumbscrew horizontal of the upright post swivel, gauge rod, and indicator clamp.

Magnetic Base Features:

• Fine Horizontal Adjustment
• V-Groove base allows mounting it on cylindrical surfaces
• Weights in under 2 lbs
• 90 lbs magnetic pull rated
• Made in U.S.A. indicator made in china
• 1/4″ x 6” long stainless steel holding rod, set with multi position adapter, swivel, bend angel in various ways
• Allows for universal positioning of Indicator.
• Base finish is gun metal back nickel plated magnets and solid brass rivets and cast aluminum block
• Base pictured above has powerful magnetic pull in excess of 90 lbs. with magnetic release
• 1″ lug back Dial Indicator 0.001″ Graduation 0-1” range with 1/4” mounting kit adaptor for ¼” holding rod.001” resolution
  • AGD 2 Lug back Style Dial Indicator made in China
  • ¼” Holding clamp block, rod holding screw assembly is black oxide plated, and the ¼” Stainless steel threaded rod are made in USA”
  • Manufactured according to ASME/ANSI standards.
  • Interchangeable contact point with 4-48 thread.
  • Rack and contact point made of hardened stainless steel.
  • Jeweled movement.
  • Stem diameter: 3/8″
  • Dial Diameter: 2″
• Shipped ready to use no assembly required
