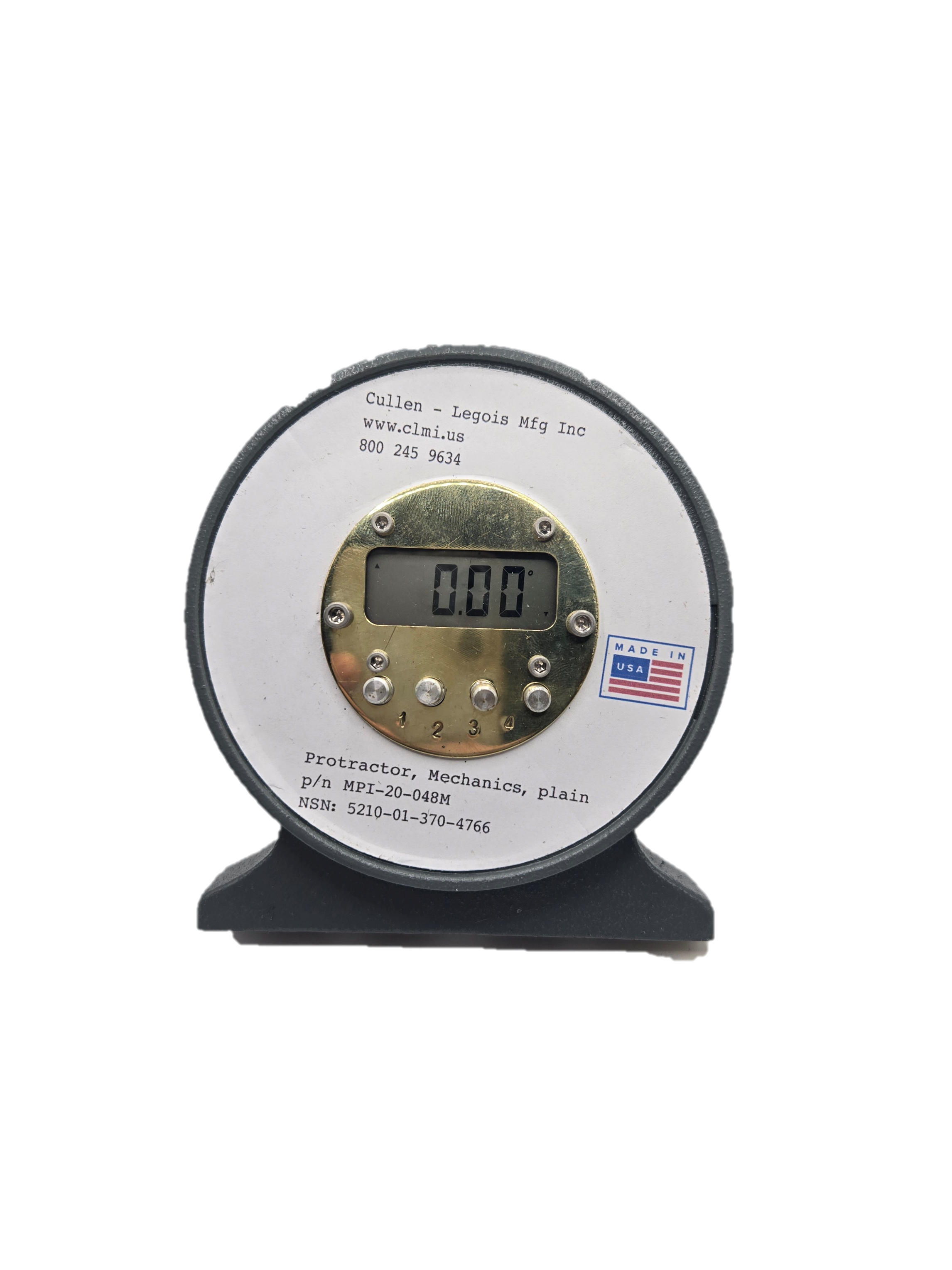

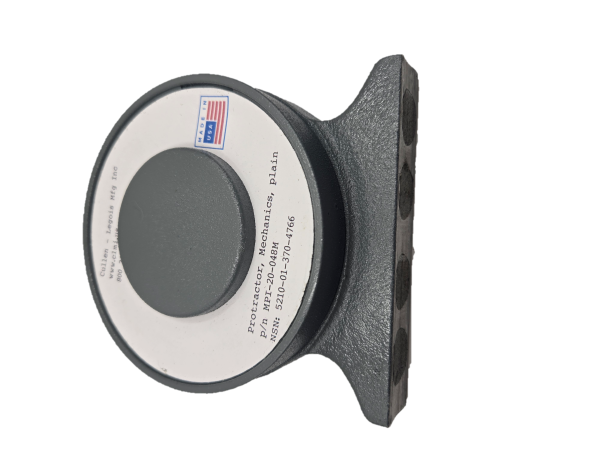

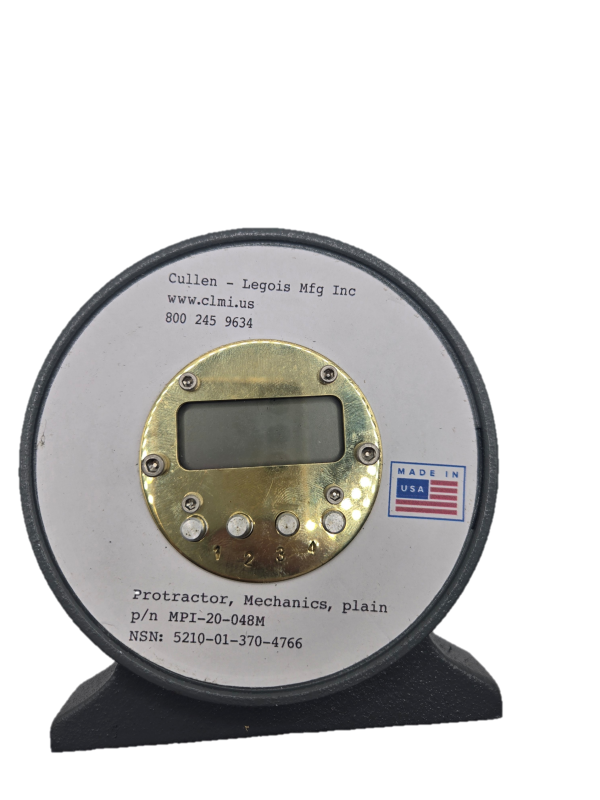

Erick Miracle Point – Flat Base Magnetic Protractor 20d NSN 5210 -01-01-379-4766 Protractor, Mechanics, Plain

Digital Erick Miracle Point model 20d Magnetic base protractors also known as centering head, or pipe centering tool. Part number MPI-20-048M,

NSN 5210 -01-01-379-4766 Protractor, Mechanics, Plain

• More durable than other magnetic base inclinometers
• Digital display resolution 0.1 degree 4×90 degree read out
  set 0 any position turn off and on resume factory calibration
  gives immediate reading of angles for 360-degree radius.
• Display .10 degree or % pitch per foot angle, Absolute or relative measurement

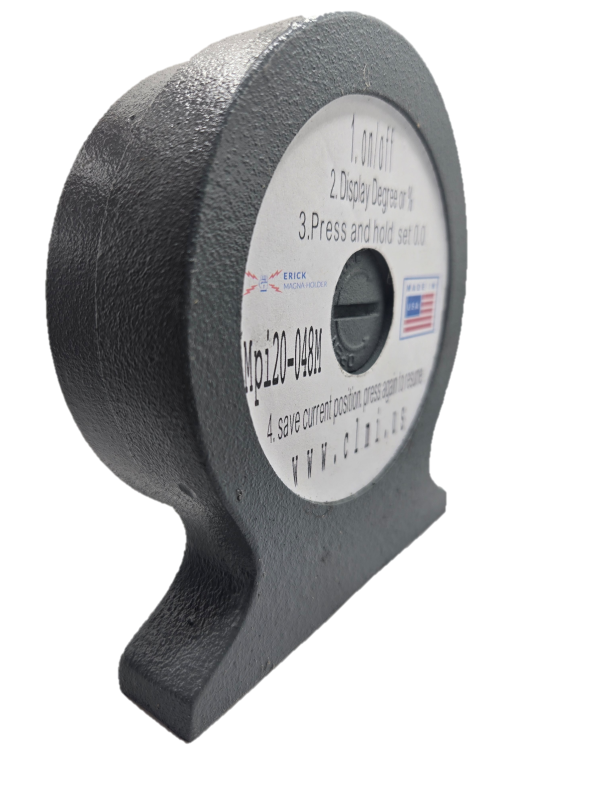

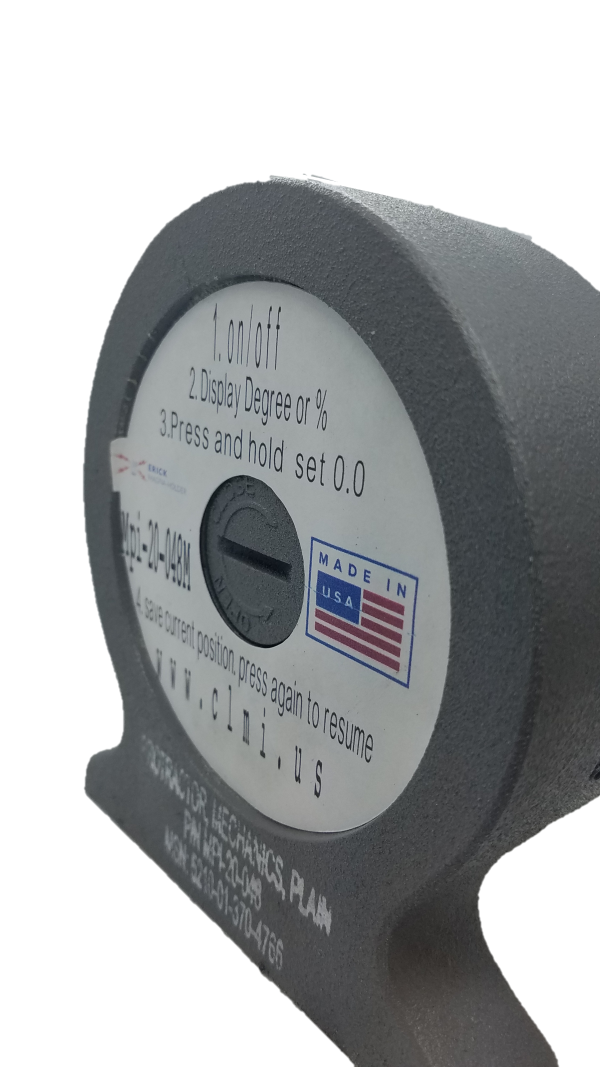

• The quarter piece easily changes battery access in the back of the unit.
• Takes three each Energizer Cr2032 batteries

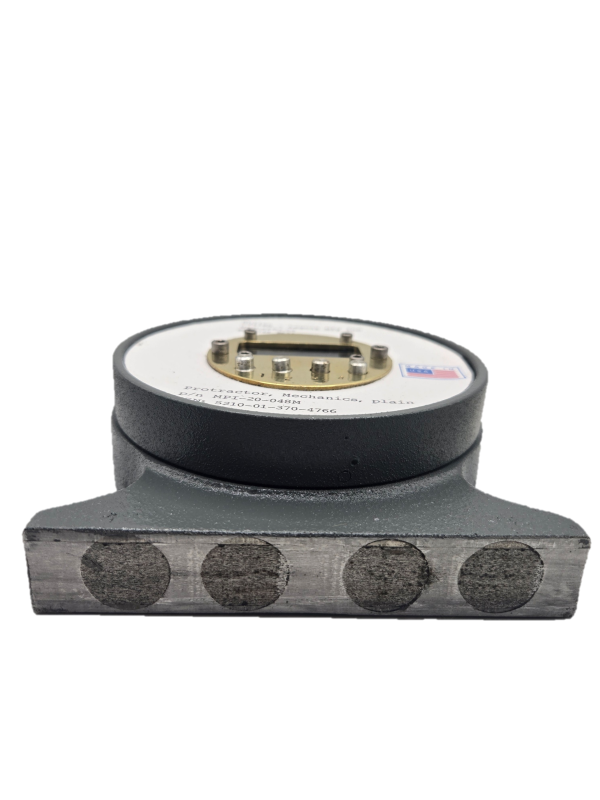

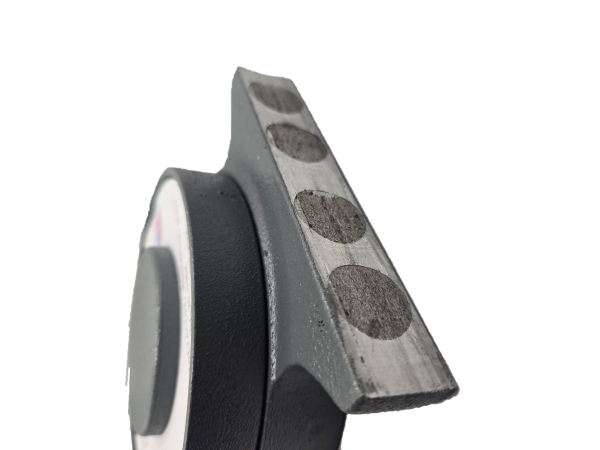

• The base exerts a powerful magnetic pull to flat or parallel with .5 – 4” radius.
• The magnetic base is so robust that it holds firmly with minimal ferrous material.

Extra features include

• Calibration certificate included with new or re-serviced units, Guaranteed +/- .5 degree
• All instruments have been calibrated against standards traceable to NIST standards
• Certificate included with new or resurfaced units, Guaranteed +/- .5 degree
• One year service warranty consists of no charge labor plus any replacement parts.
• Made in U.S.A.

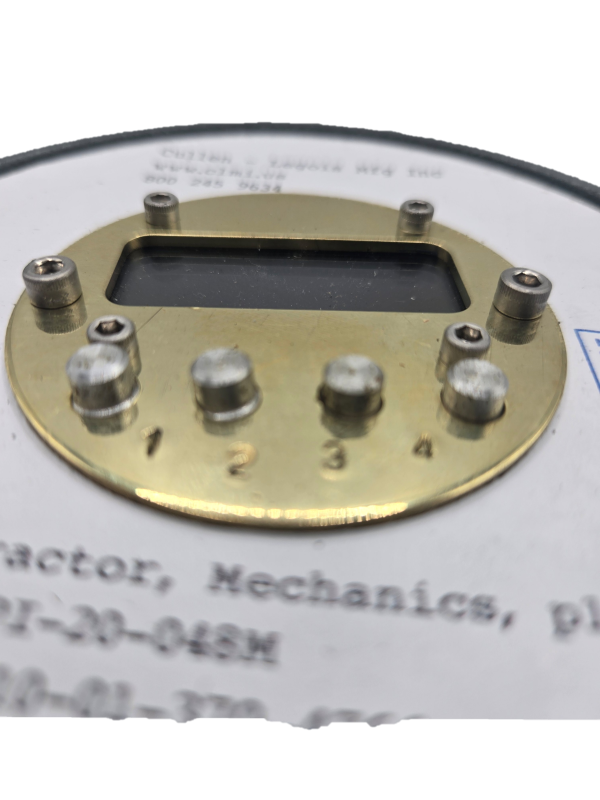

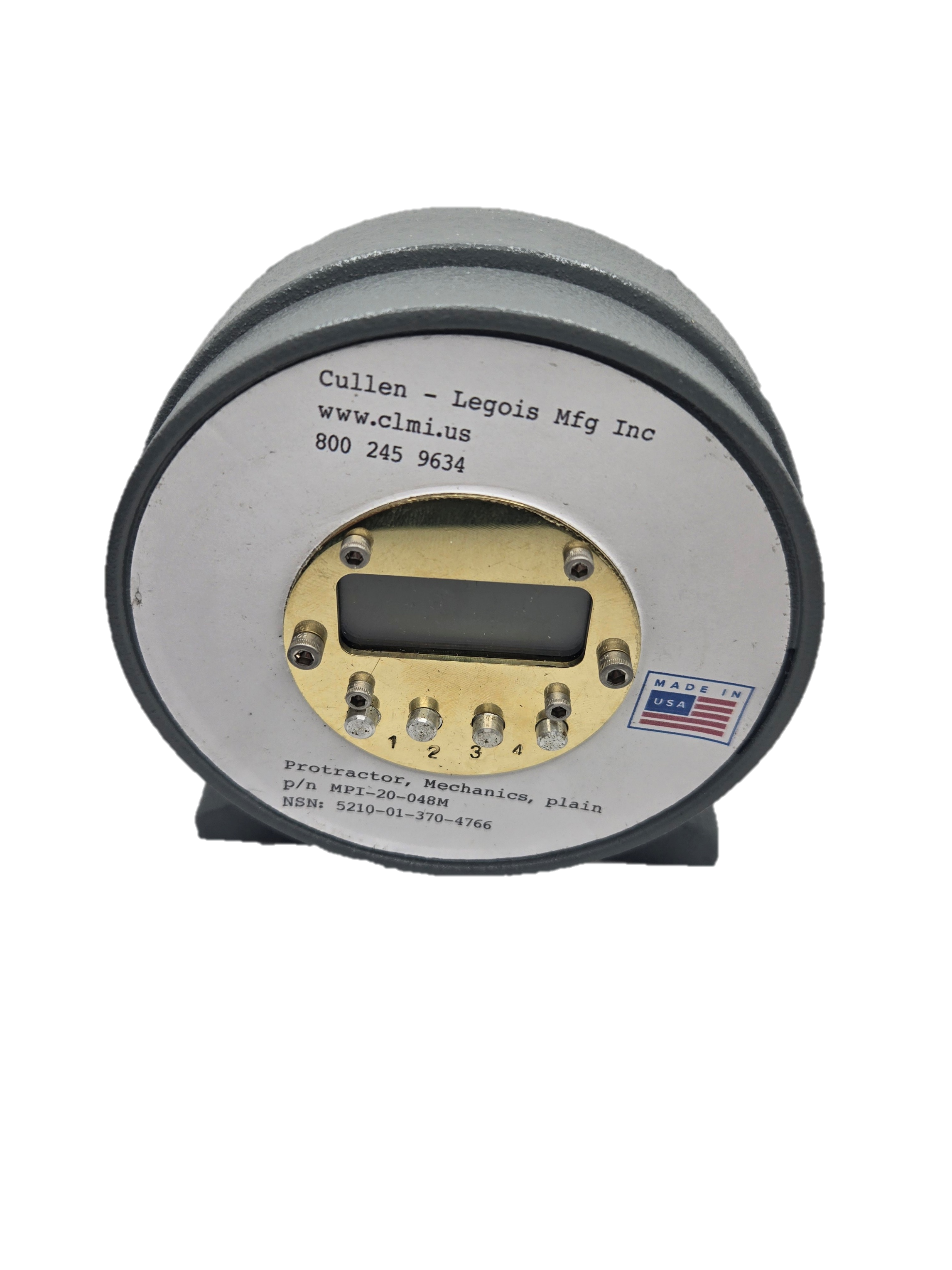

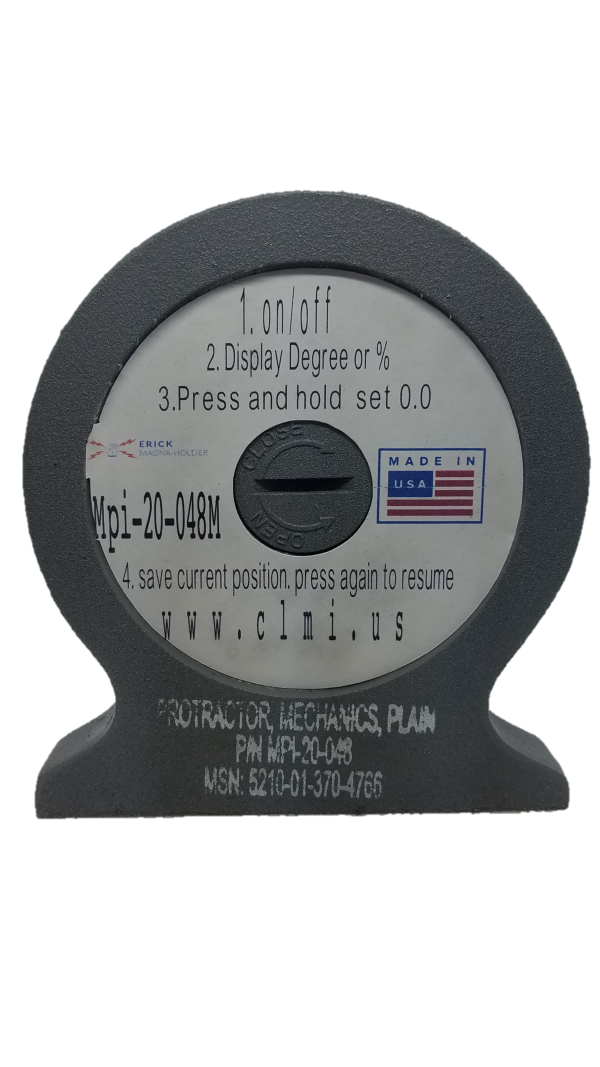

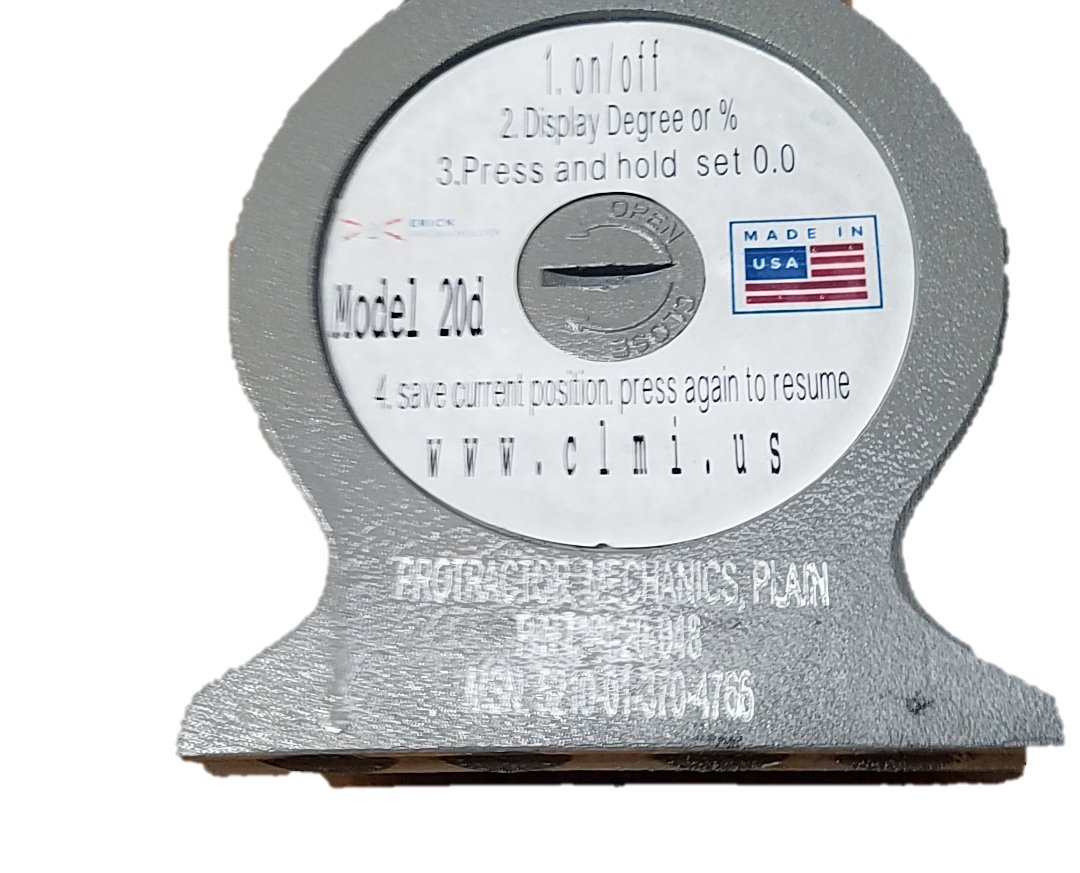

Buttons

• Button 1: on/off power switch press and hold for 3-5 seconds to power on/off
• Button 2: Display option Degree or % of slope, press to switch
• Button 3: Calibrate setting Absolut 0.0 or current position set relative 0.0 press and hold for 3 sec to set 0.0 (unit is set at factory and will resume factory setting once turned on/off)
• Button 4: Hold to save current position, press and hold the 4th button, the current position will be locked to the screen, the arrow will blink… press again to resume

Guaranteed Centering accuracy – ± .1° for One Full Year

• We guarantee calibration for one year on new and rebuild units
  1-year service warranty includes no charge labor.
• After one year has expired, rebuild fee of US$228.00 any model just like new

Digital interface – 2″
Weight – 28 oz.

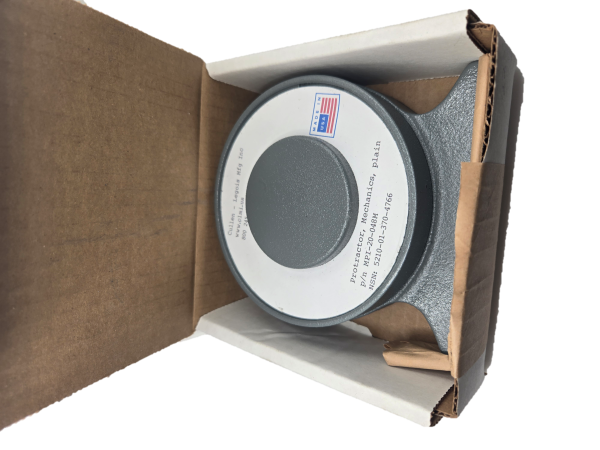

Packaged – One per box
cast aluminum housing. American made
