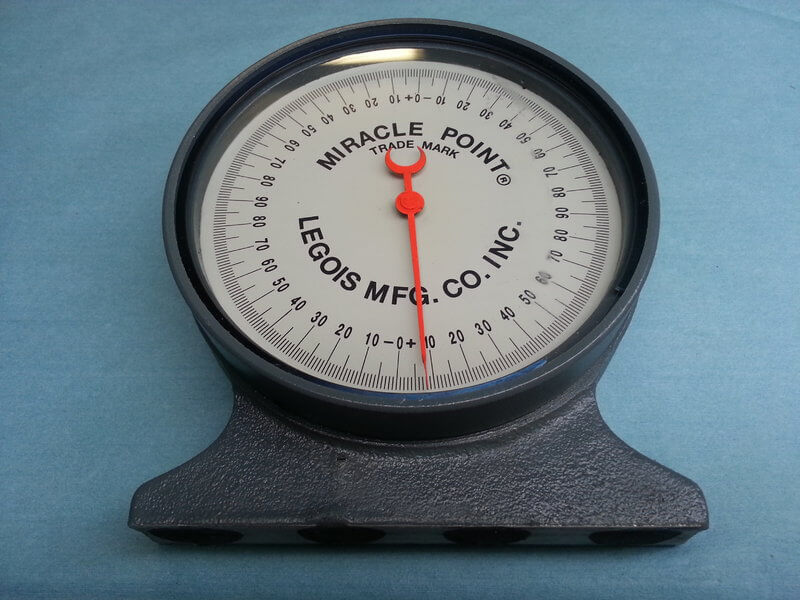

Erick Miracle Point – Flat Base Magnetic Protractor 20r

This units offers full 360 degree range of measurement with alternate reference capabilities

i.e. The instrument is able to measure angle from other then the horizontal plain by turning outer ring to set calibration point

The magnetic base offers over 50lbs of pull attaching to flat or round surfaces up to 4″ diameter pipe (please see print)

Extra features include

• Calibration certificate included with new or re-serviced units Guaranteed +/- .5 degree
• All instruments have been calibrated against standards traceable to NIST standards
• certificate included with new or re-serviced units Guaranteed +/- .5 degree
• 1 year service warrantee includes no charge labor plus any replacement parts.
• Made in U.S.A.
• Dial Face- 4″
• Height- 4-6″
• Thickness- 1.5″
• Weight- 24 oz.
• Packaged: One Each

The TOOL with UNLIMITED USE

• ANGLE INDICATOR
  This accurate protractor has an extremely sensitive, balanced needle which gives immediate reading of angles for 360 degrees. The flat base exerts a powerful magnetic pull.
• TOOLROOM and MACHINE ROOMS
  Determining angles on shapers, milling machines, grinders, welding applications, etc.
• WELDING SHOPS
  Indispensable in quickly and accurately determining angles.
• CONSTRUCTION and MAINTENANCE
  Locate plumb level.
• AUTO and TRUCK STOPS
  Checks drive line angles and many other uses.
