Erick Magna Holder – 350a Kit

Comes complete with easy to read indicator with digital display and Vertical lug back configuration. digital Indicator: has 1″ stroke.

The resolution is 0.001″ standard or .00 metric mm.

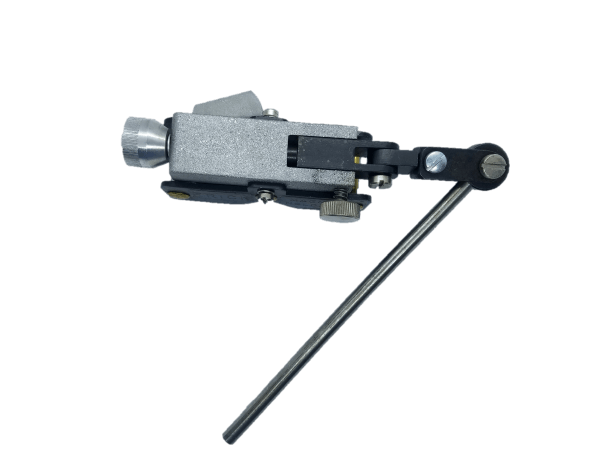

Magnetic Base: powerful magnet to flat or round surfaces. Reach as far as 9” with fine adjustment with the Knurled thumbscrew horizontal of the upright post swivel, gauge rod, and indicator clamp.

Magnetic Base Features:

• Fine Horizontal Adjustment
• V-Groove base allows mounting it on cylindrical surfaces
• Weights in under 2 lbs
• 90 lbs magnetic pull rated
• Made in U.S.A. indicator made in china
• 1/4″ x 6” long stainless steel holding rod, set with multi position adapter, swivel, bend angel in various ways
• Allows for universal positioning of Indicator.
• Base finish is gun metal back nickel plated magnets and solid brass rivets and cast aluminum block

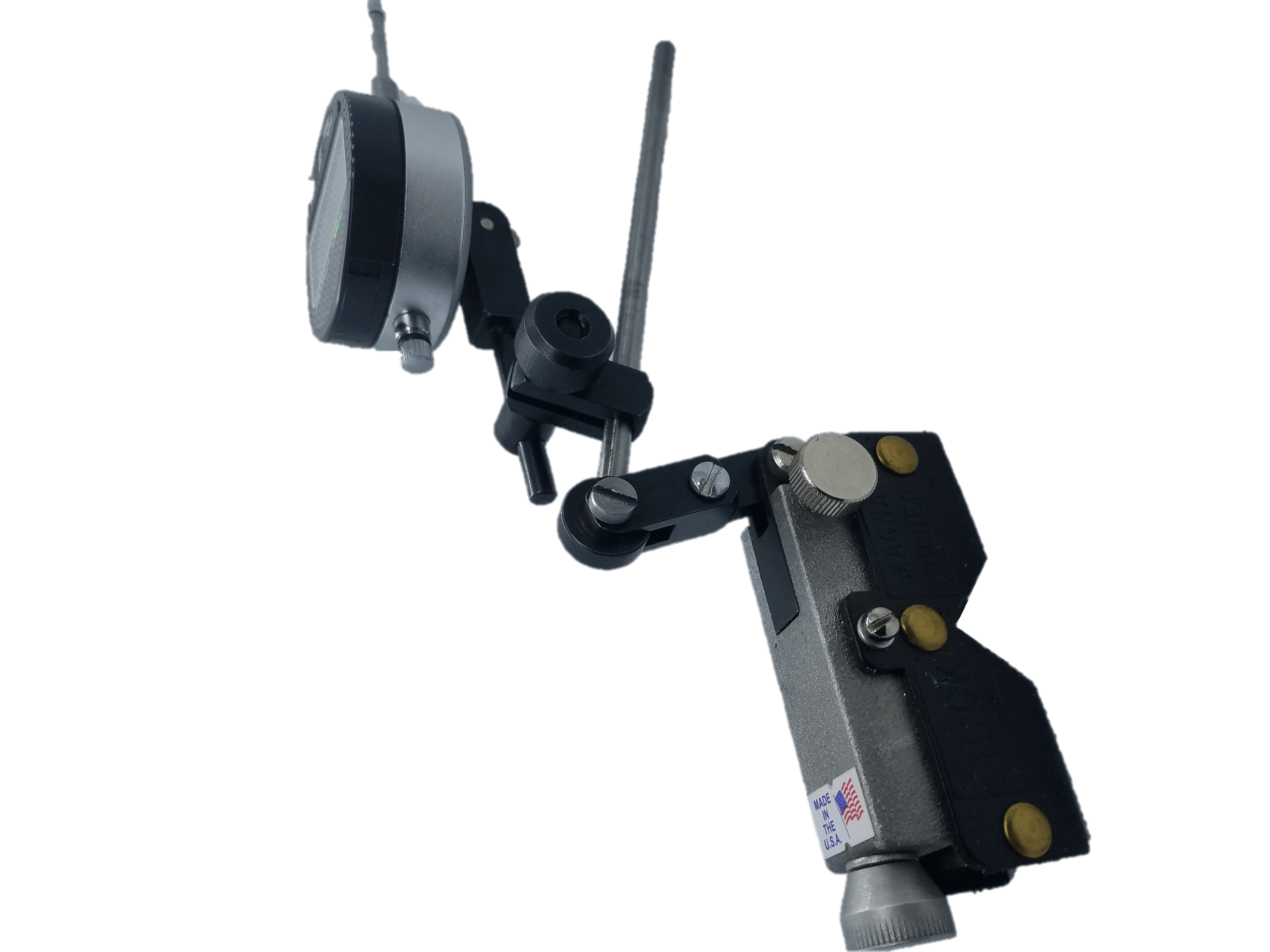

• Base pictured above has powerful magnetic pull in excess of 90 lbs. with magnetic release
• Shipped ready to use no assembly required
